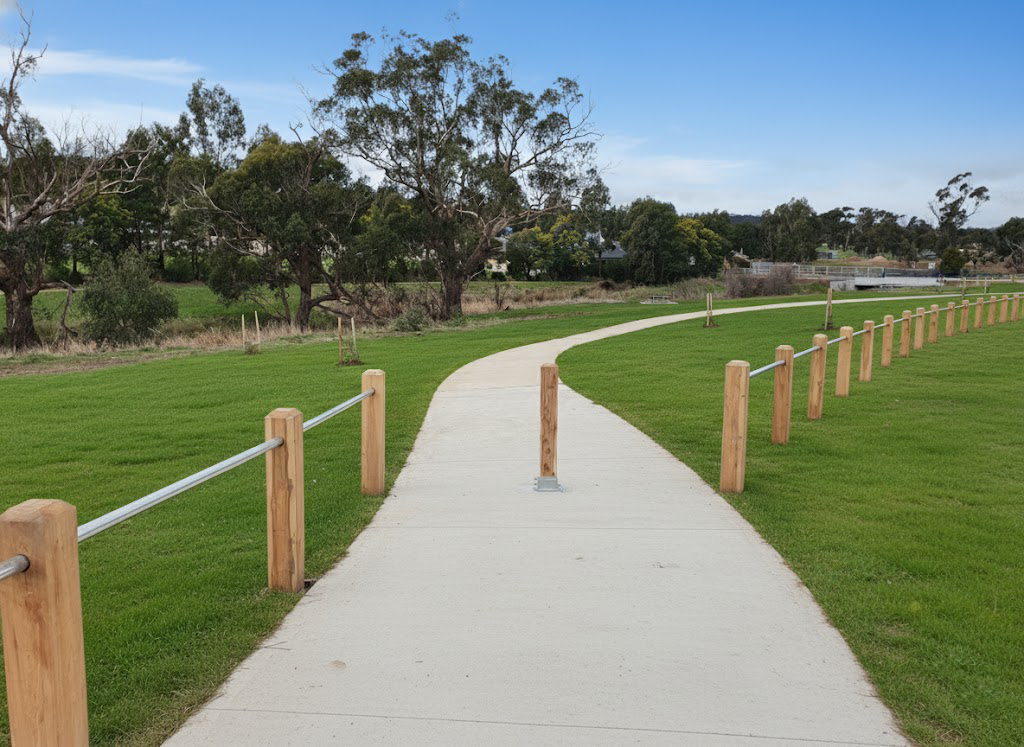

Pipe rail
Pipe rail

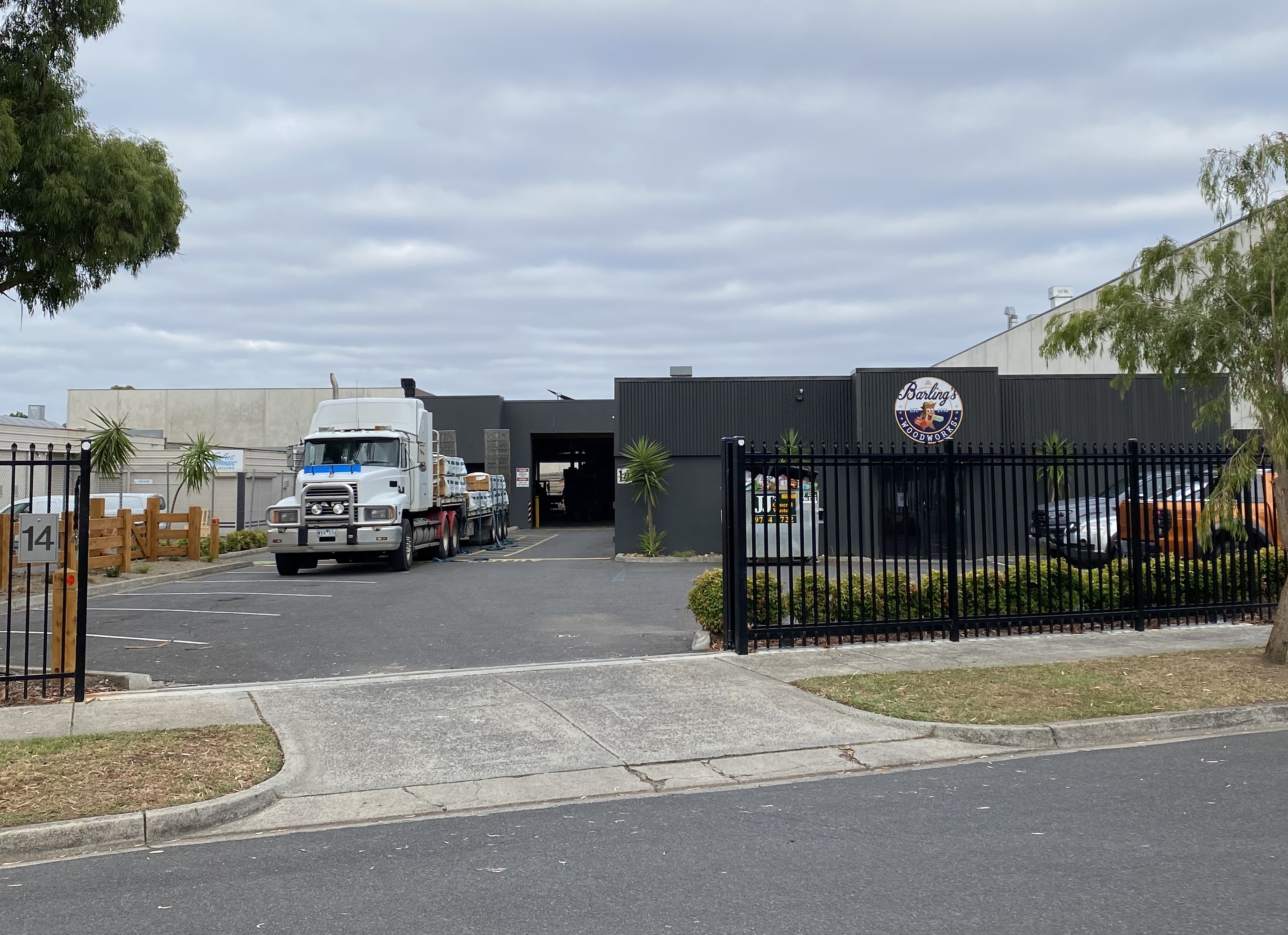

We have moved to a larger location, 14 Shelley Ave Kilsyth 3137

Boll Eand2

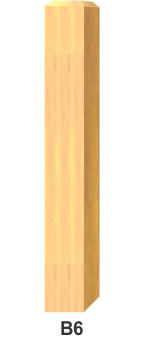

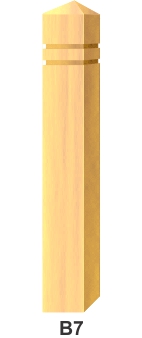

Common Types1

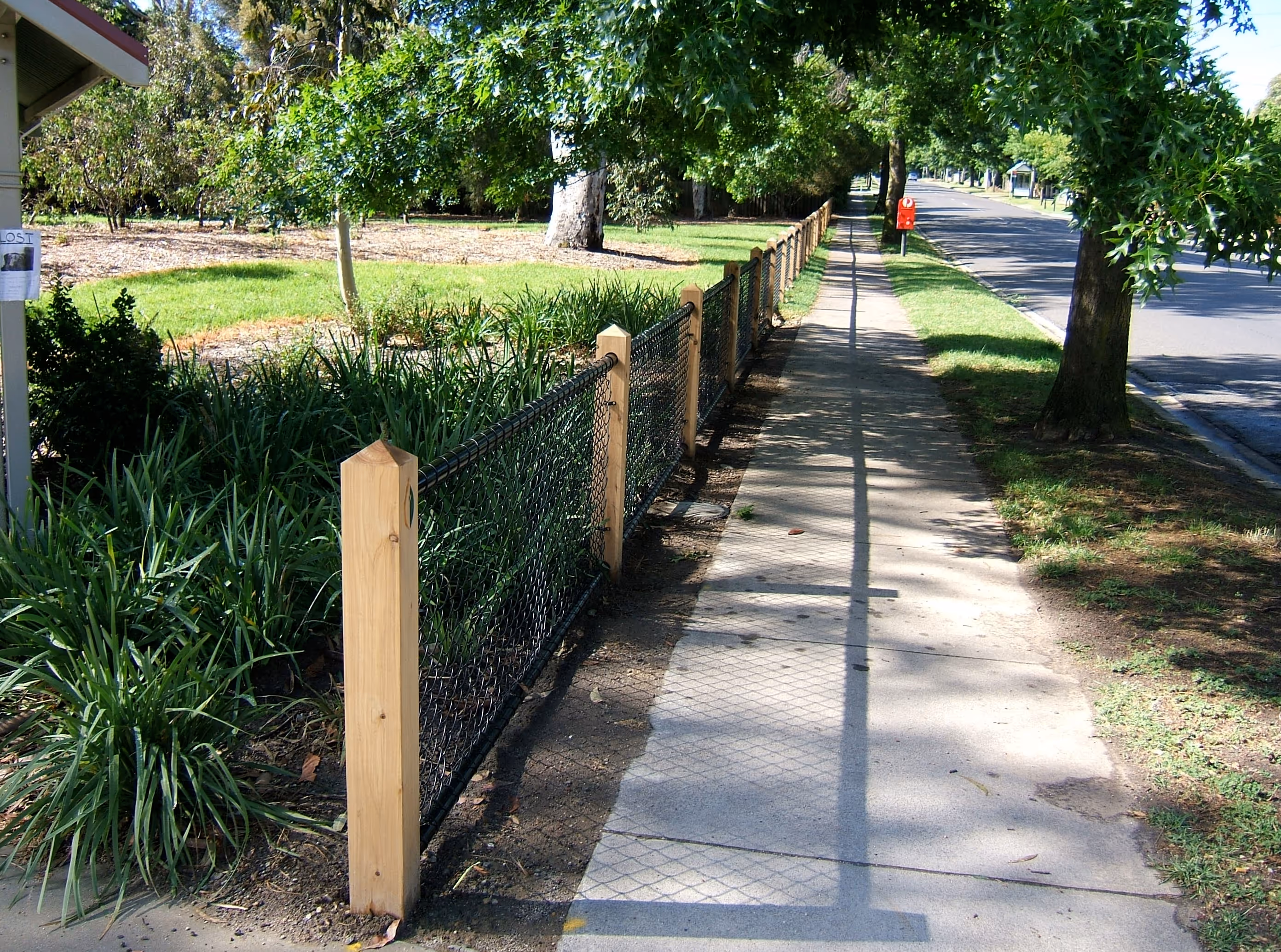

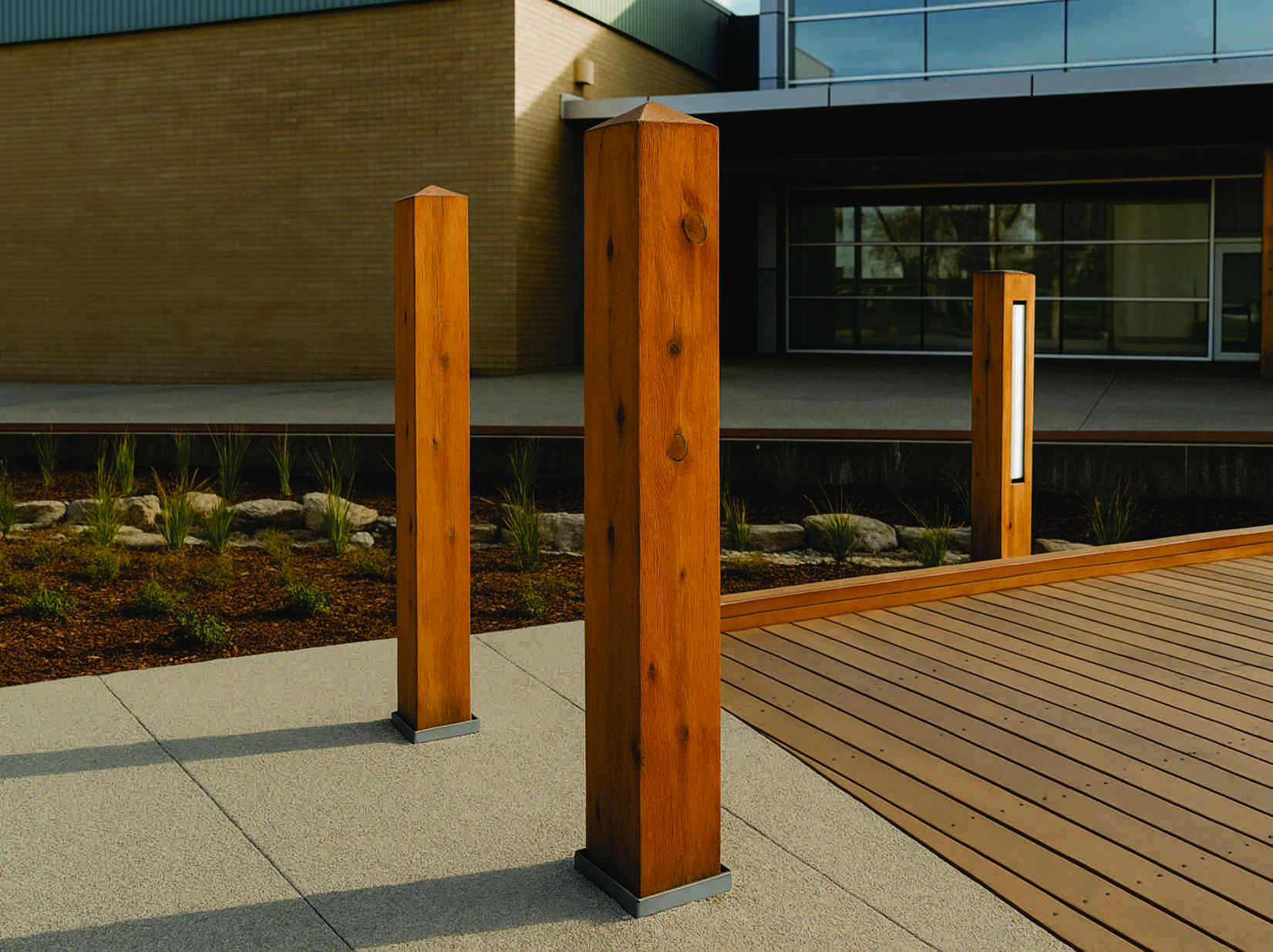

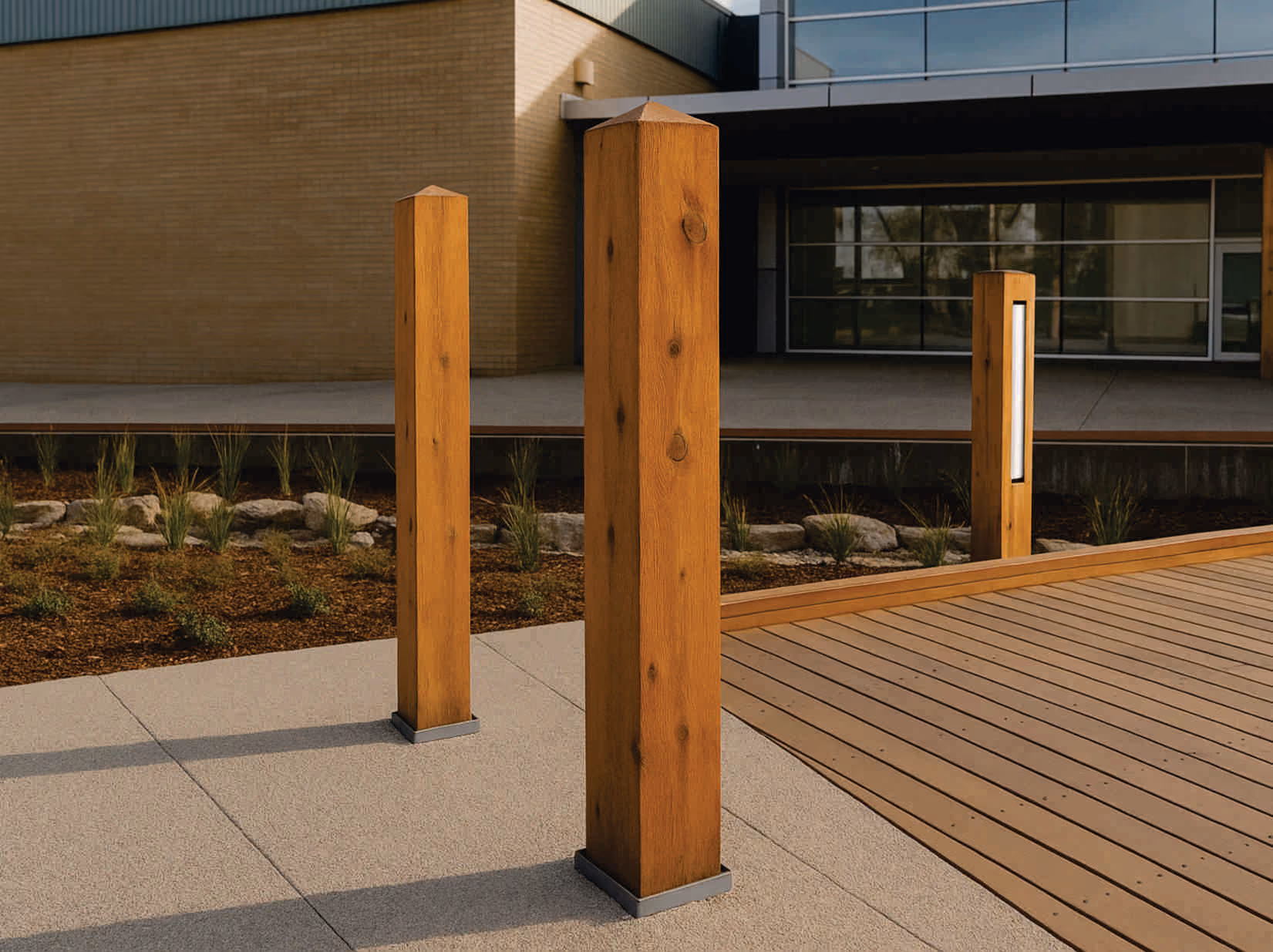

Timber Bollards for landscape projects, road and pedestrian management and fencing.

We make to order only because the range, shape and size of timber bollards is limitless.

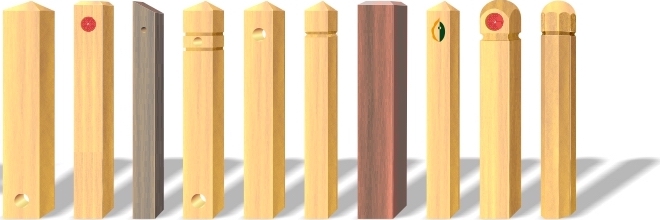

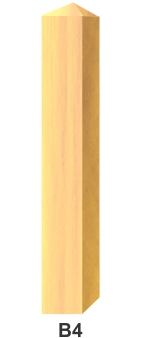

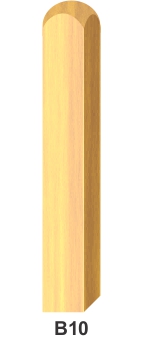

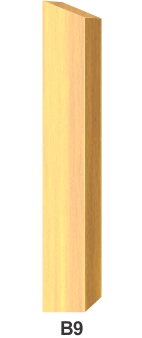

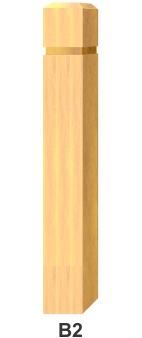

Above we have of some more commonly used bollards, along with different bollard tops, collars and chamfer edges, you can mix and match the shape and size of the bollard to suit your needs for any application. Commonly used Bollards are, 1.2 to 1.5 meters long and 125, 150 & 200mm square, in both sawn or dressed finishes. When dressed, the sizes are 115mm and 140mm

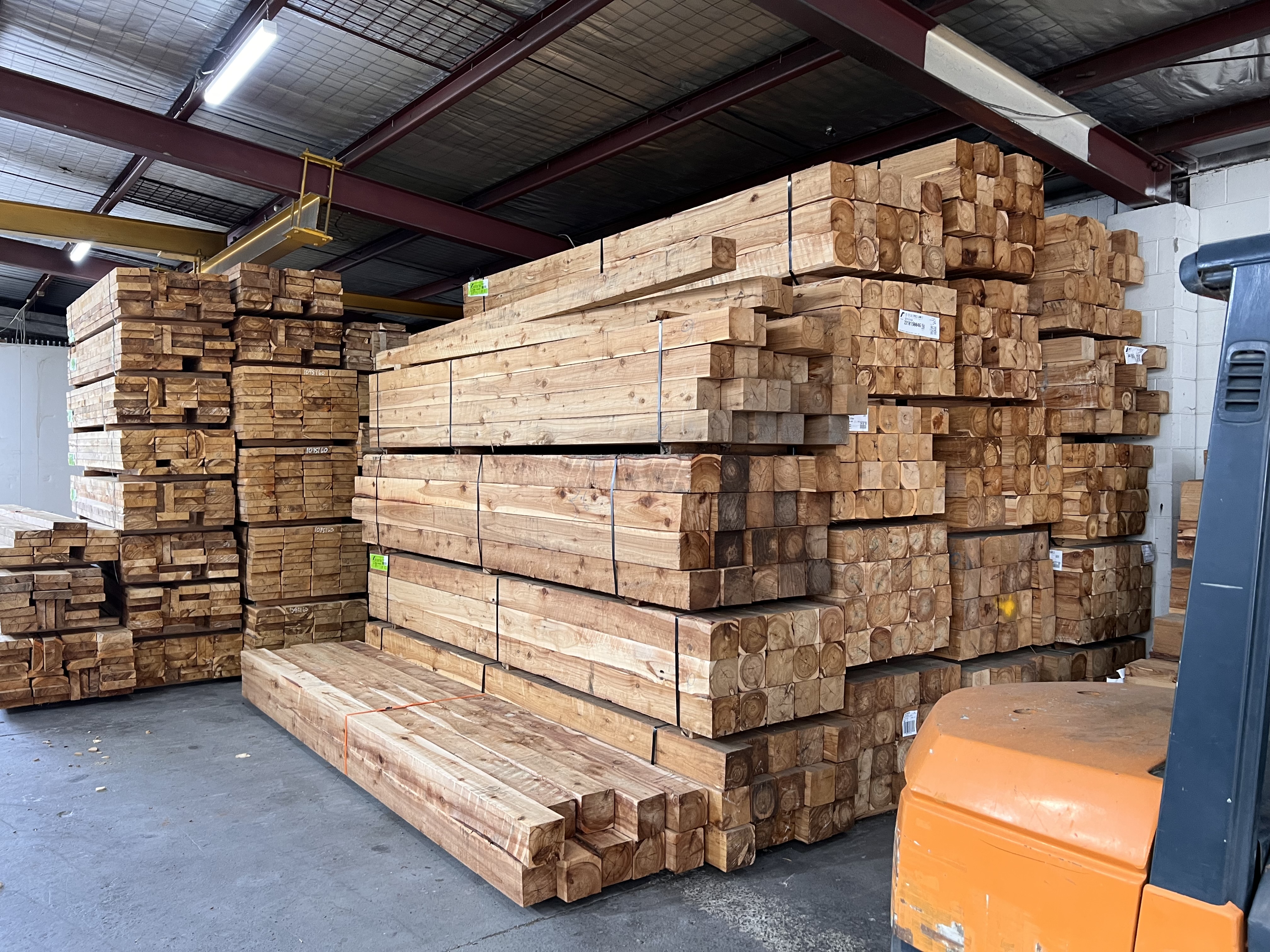

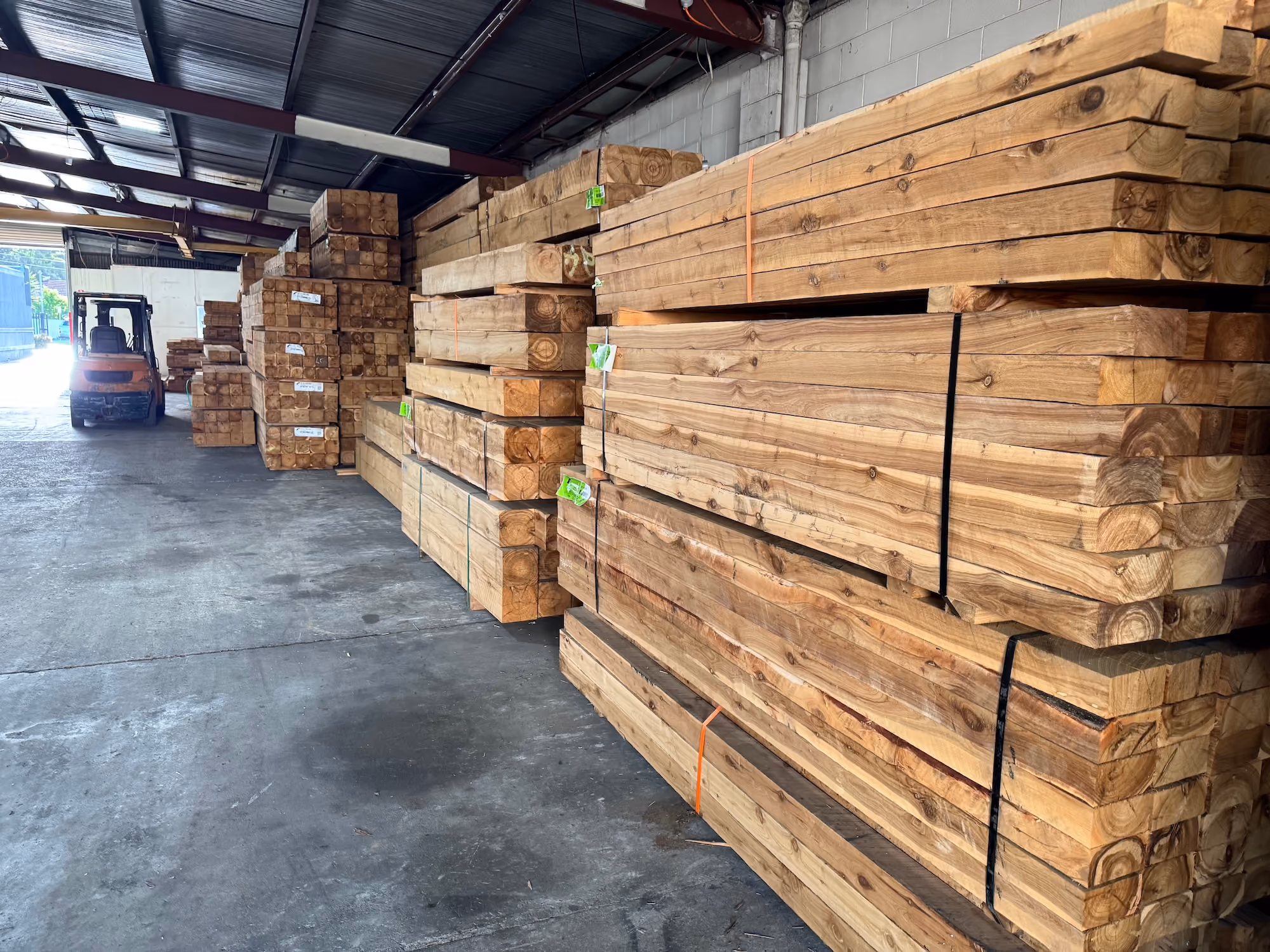

    We use only the best F7 structural, FSC Certified, White Cypress Pine.

We can supply bollards up to 300mm square and 6 meters long. The timbers we supply are Cypress pine, Spotted Gum and Iron Bark. But the most used timber for bollards is CYPRESS PINE, due too its class 2 below ground rating, low shrinkage rate of 2.9% and its natural resistance to white ants.

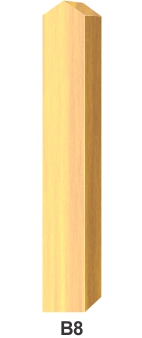

Examples of Bollard Tops


Pyramid Top

Dome Top

Peak Top

Chamfer Top

Splay Top

Bollard tops can be made in many different shapes and sizes. The size of a chamfered top is most commonly 20mm and a pyramid top is set at 35deg, but this is only a guide. We can manufacture your bollard tops to any shape and size, to meet your specifications.

Examples of Bollard Collars


18mm Square Collar

25mm Square Collar

18mm Round Collar

25mm Round Collar

18mm Vee Collar

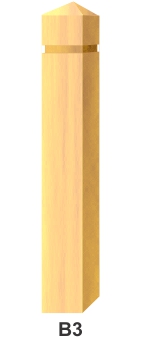

Collar sizes vary from job to job, the same as the bollard tops. We have manufactured them from 4mm to110mm wide and up to 25mm deep, but the most common size is 18mm wide by 10mm deep and the most common shape is square. Because each job is unique, we have the experience to help you create any shape you require.

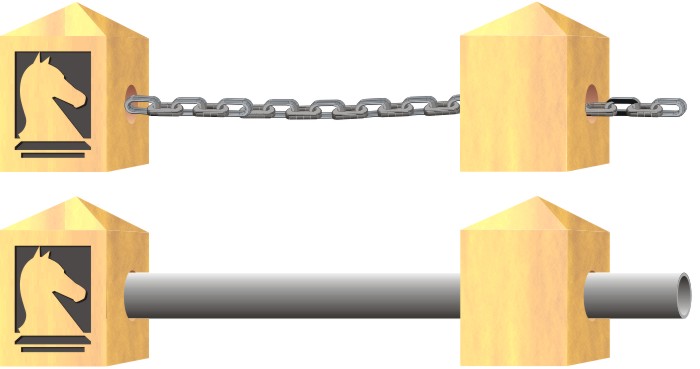

Chain Pipe and Cable Holes


We can drill your Chain, pipe or cable holes up to 85mm. Through bollards up to 300mm square or round. We recommend the hole size for pipe, be 5mm bigger than the outside diameter of the pipe required and 3mm bigger for chain and cable.

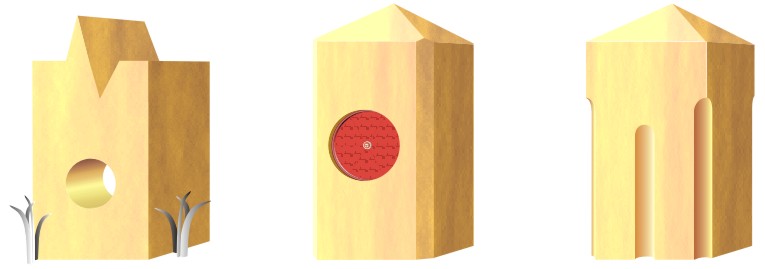

Bollard Extras


Impact Hole

Recessed Delineator & Chamfered Edges

Scallop Edges & face

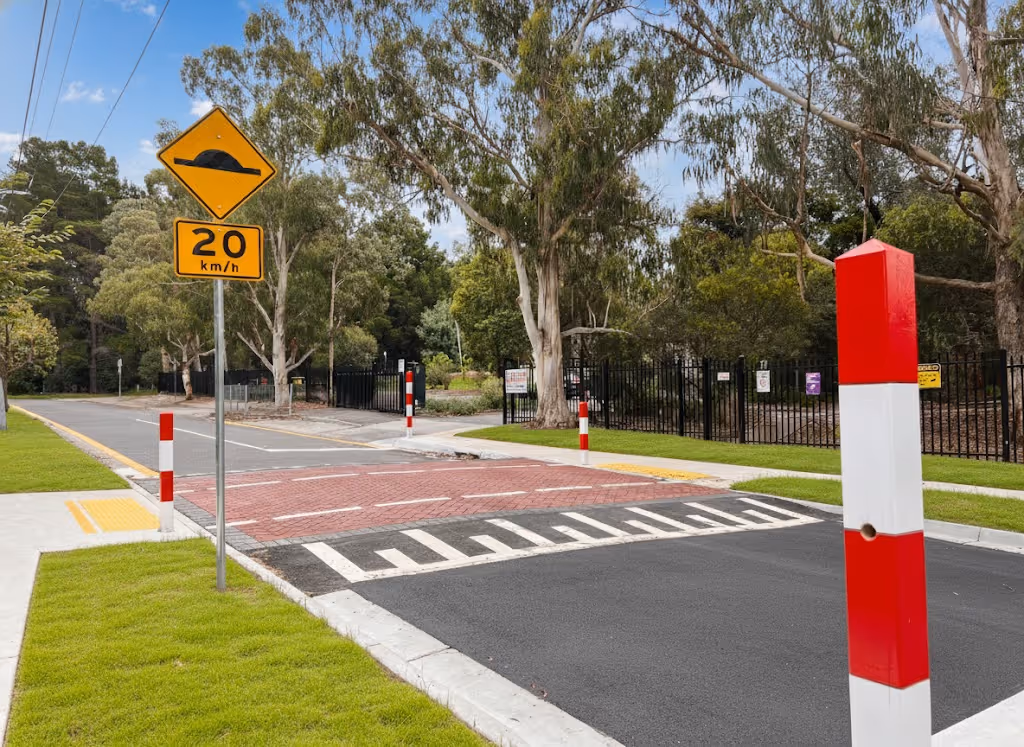

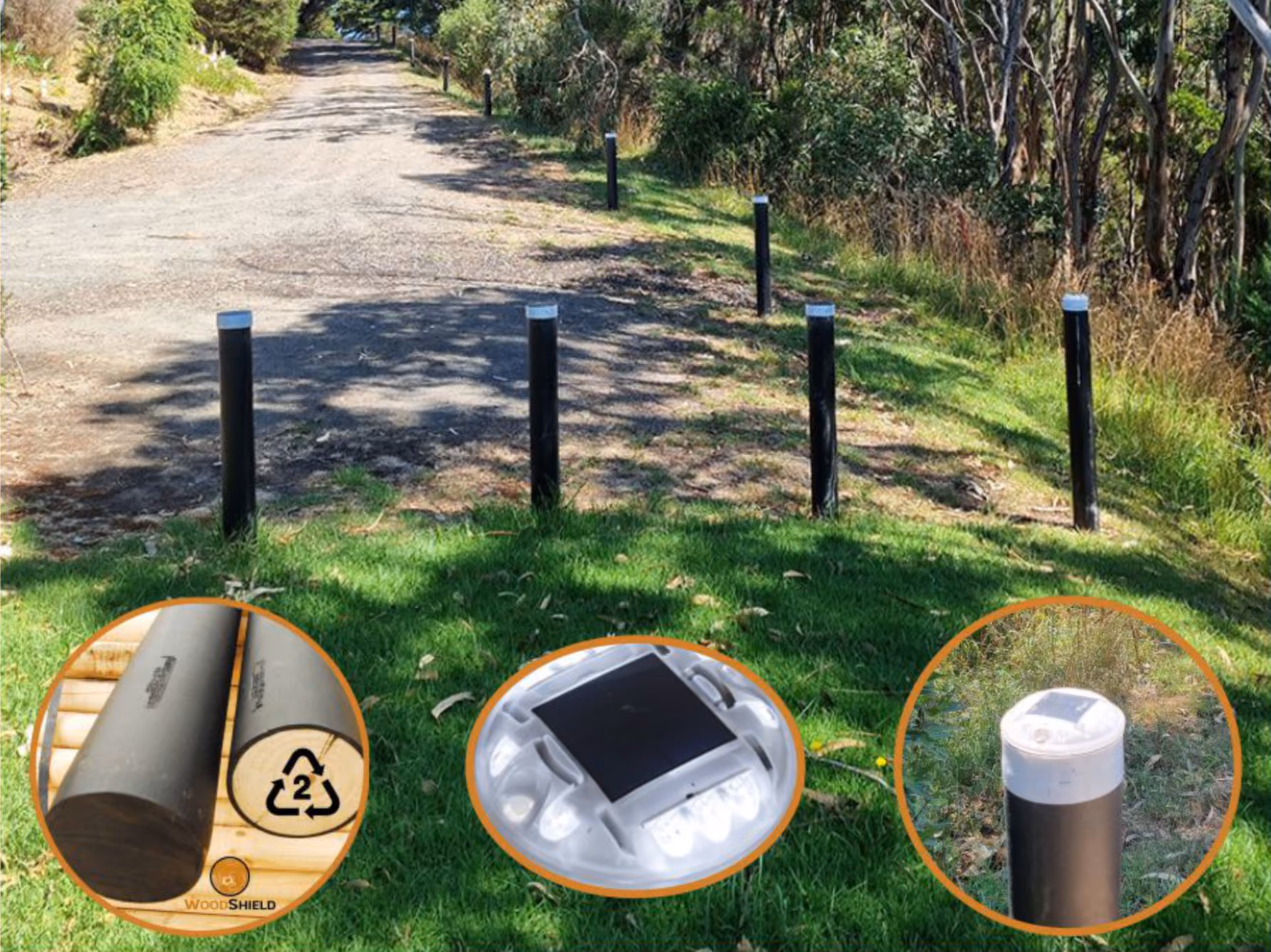

Impact protection holes are widely used in bollards along road sides parks and reserves to lessen the impact of a vehicle collision. They are usually accompanied by delineators recessed 10mm into the bollards to prevent vandalism. Red delineators on the approach side and white the opposite side.

 Where scalloped edges are more for decorative purposes. Chamfering the edges of a bollard, also makes a bollard more user friendly by alleviating sharp corners and splinters.


Bollard Installation in Concrete

Bollard Installation in Slurry
